產品規格參數

• 測量精度

  pn ≥ 400mbar: 0.35 %
  pn < 400mbar: 0.50 %

• 過程溫度

  -10°C...+70°C
  (+14°F...+158°F)

• 壓力測量范圍

  200 mbar...2 bar
  (3 psi...29 psi)

• 過程壓力（絕壓）/最大過壓限定值

  10 bar (145 psi)

• 主要接液部件

  316L

• 最大測量距離

  200 m H2O
  (656 ft H2O)

• 過程膜片的材質

  Metal

• 傳感器

  200 mbar...2 bar
  (3 psi...29 psi)

• 查看完整規格參數

應用領域

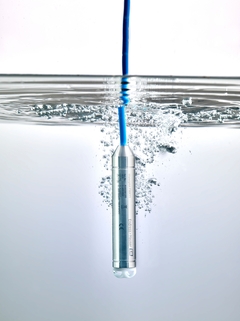

The Waterpilot FMX11 transmitter is typically used in environmental applications for hydrostatic level measurement. It is certified for drinking water applications and can be used in wells, storage tanks, water towers, dams, gauging stations, lakes and rivers.

• Temperature: –10 to +70°C (14 to 158°F)

• Measuring range: 0 to 2bar / 20m H20 (0 to 30psi / 67ft H2O)

• Cable length: 6 to 30m

• Accuracy: up to ±0.35%

• Drinking water approvals: ACS, KTW, NSF61, DVGW

• Certifications: cULus

優勢

• Simple and reliable transmitter for various drinking water applications

• Easy installation, commissioning and operation

• Orderable with flexible measuring ranges and cable lengths tailored to fit your application

• Robust construction for durable long-term services

• Suitable for surface water monitoring in rivers and lakes as well as level monitoring for drinking water production, e.g. in water towers, dams, gauging stations

• Compact size d=22mm (0.87”), makes this an excellent choice for applications in bore holes and small diameter stilling wells.

• Simple specification and ordering

該產品備用大量現貨：

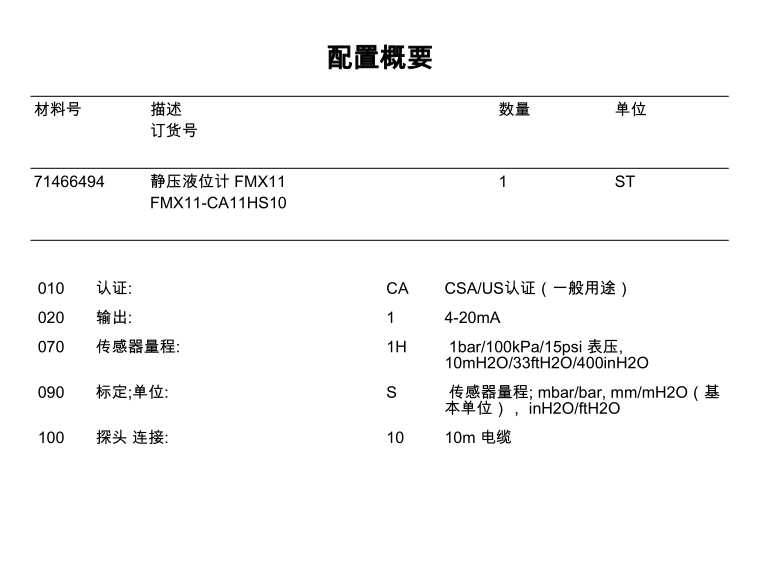

FMX11-CA11HS10   0-10m
